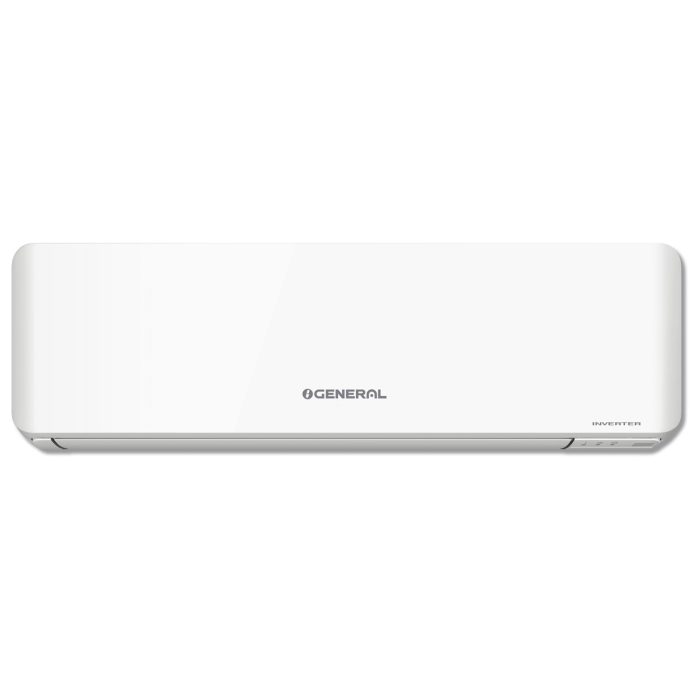

General Inverter Air Conditioner
Description
The ASGG-12CPTA-VZ lives up to this reputation. This AC is the best solution for all your cooling needs. Be it those hot summer months or the mild temperature of spring, this AC gives you the most comfortable cooling you could ask for. And the promise of great service and durability of General is always there to give you 100% peace of mind. Buy it once… and use it without any worries for many years! That’s what General AC is all about.
Specifications
| Outdoor Unit Model | AOGG-12CPTA-V |
|---|---|
| POWER SOURCE (V/Ø/HZ) | 220 / 1 / 50 |
| Input Power-Cooling (W) | 1180 |
| CSPF-Cooling | 4.62 |
| Moisture Removal-Cooling (l/h) | 1.5 |
| Airflow Rate-Indoor-High(m3/h) | 550 |
| Airflow Distance-Indoor (m) | 10 |
| Sound Pressure-Indoor-SP-Hi/Mid/Lo (dB(A)) | 43/39/33 |
| Sound Pressure-Indoor-SP-Qu (dB(A)) | 22 |
| Sound Pressure-Outdoor-SP (dB(A)) | 50 |
| Net Dimension (H×W×D)-Indoor-mm | 270 × 784 × 224 |
| Net Weight-Indoor-kg | 8.5 |
| Net Dimension (H×W×D)-Outdoor-mm | 541 × 663 × 290 |
| Net Weight-Outdoor-kg | 22 |
| Piping Connection (Small / Large) (mm) | 6.35/9.52 |
| Standard Pipe Length (m) | 7.5 |
| Max. Pipe Length (Pre-charge) (m) | 20 (10) |
| Add charge volume (g/m) | 20 |
| Max. Height Difference (m) | 15 |
| Operation Range-Indoor (˚C) | 18 – 32 |
| Operation Range-Outdoor (˚C) | 18 – 52 |
| Refrigerant Charge (Type) (kg) | 0.45(R32) |
| COOLING INPUT POWER (KW) | 3.37 |
Warranty & Services
Electrical Spare Parts: 2 Years
Compressor: 2 Years
Free Service: 3 Years
Country of Origin: Japan
Country of Assemble: Thailand
